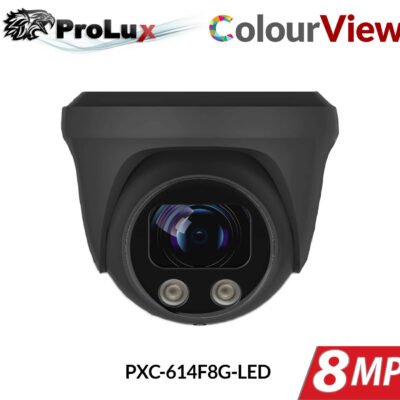

Prolux PXC-614F8GL 8MP ColourView HD-TVI Camera Colour at night

£37.50 inc VAT: £45.00

The Prolux PXC-614F8GL is a 8MP 4K Dome Turret Colour at night camera with 2x illuminating LED lights, combined with a 2.8mm Fixed lens.

> ColourView 24/7 Colour video
> 8MP 1/2.9″ CMOS sensor
> 25m LED distance
> DWDR, 3DNR
> Full metal Body
> HD-TVI/AHD/HD-CVI/CVBS
> 2.8mm fixed lens

> IP67, DC12V±10%, 450mA

Please login or register now to add to cart Compare This Product

Description

The ProLux PXC-614F8GL 8MP Dome camera has a 2.8 mm Fixed Lens giving a 105° viewing angle.

Prolux PXC-614F8GL 8MP ColourView HD-TVI Camera (AHD,CVI,CVBs)
CMOS sensor & HD-TVI default output

This Eyeball Dome camera comes with the latest CMOS sensor, designed to provide the sharpest and most colour accurate images on the 8MP market. Combined with the HD-TVI output mode, the image clarity is second to none.

Powered by ColourView

Prolux’ PXC-614F8GL 8MP comes with two warm supplemental LED lights. The F1.0 large aperture lens and 1/2.9″ high-performance sensor combined with the LED lights allow the camera to provide a colourful and vivid image even in total darkness. By default, the camera is set to smart light mode, in which the camera can automatically adjust the exposure time and light sensitivity simultaneously to avoid overexposure of the objects in the image centre.

The camera presents an impressive low light performance, by absorbing a higher amount of light combined with advanced image processing algorithm. This makes an exceptional balance between noise reduction and the blur of a moving object.

IP67 Waterproof

This has an IP67 rating, you don’t need to worry about dust or water damage to the Prolux PXC-614F8GL 8MP camera. Combined with a full aluminium body, these cameras are designed to last many years. The unit can be dropped into a body of water up to a meter deep for half an hour with no damage.

Highlighted features of Prolux PXC-614F8GL:
    • 8MP 4K Ultra HD resolution
    • Video output: HD-TVI/AHD/HD-CVI/CVBS
    • 2.8mm Fixed Lens
    • 2x illuminating LEDs (Warm white 4000K)
    • up to 25m LED distance(83ft)
    • up to 30m IR distance (99ft)
    • DWDR & 3DNR
    • Full Metal Eyeball & Casing
    • Power Consumption DC12V±10%, 450mA
    • Ingress Protection & Vandal Resistance IP67
    • Dimensions Φ96mm×91mm (Φ3.78″×3.58″)

Check out the white version here.

Do you need any help?
Why not give us a call on 0161 791 2351 or 0161 879 9191.

Additional information

Color

White

Megapixel

5MP

Lens

2.8mm

Brand

ProLux

Camera Shape

Dome, Turret

Specification Sheet

PXC-614F8WL Camera
Image Sensor 1/2.9″ CMOS Sensor
Image Resolution 8MP:3840*2160 5MP:2592*1944 4MP: 2560*1440 2MP:1920*1080
TV System PAL/NTSC
Electronic Shutter AUTO
Scanning System Progressive  Scan
Lens
Focus Length 2.8 mm
Focus Control Fixed
Lens Type Fixed
Night Vision
IR Cut Filter YES
Infrared distance UP to 30m
Light Distance up to 25m Warm white (4000K)
IR Status AGC Auto Control
Camera Features
Day/Night colour
OSD Menu YES
WDR DWDR
UTC YES
Noise Reduction 3DNR
White Balance AUTO / MANUAL
Gain Control AUTO
General
Housing Metal Eyeball, Metal Casing
Waterproof rating IP67
Operation Temperature -10℃ ~ +60℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 450mA
Dimension ¢96 x 91(H) mm
Weight 600g

CCTV Lens Guide

What lens type is best for you

Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be “zoomed out more”, while a bigger lens will narrow the angle down and “zoom in more”. See below to give you some idea on angles of Megapixel HD Cameras:

Lens in mm Approx Viewing Angle (degrees) Ideal Distance (metres) Typical usage/notes
2.8 106 <6 For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) – clearly “zoomed out”
3.6/4 83-90 <12 A great general-purpose option giving great coverage still in the corner of a room or higher up on second-floor soffits with less distortion – more of a natural “zoom”
6 56 6-20 Narrows down the angle and zooms in to look past the immediate area a little to gain more detail – down a driveway for example from higher up
12 24 20+ Zooms in significantly more to look at a gate, entrance or adjacent building
16 19 24+ As above but more so
