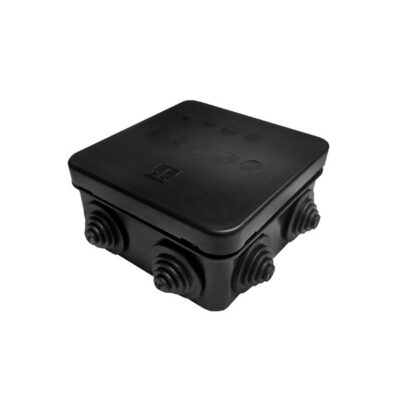

IP55 Weatherproof Black Small Junction Box Housing 85x85x40mm

£2.00 inc VAT: £2.40

Suitable for installation in damp and wet areas or rooms, for buildings and structures in crowded areas, in temporary buildings, cars and caravans.

Description

This black small junction box is waterproof to IP55 and offers a simple low-cost solution for general installation use.

It has a press on cover and is ideal when mounting small electrical items such as CCTV camera terminations, transformers and terminals.

It is suitable for installation in damp and wet areas or rooms. And also for buildings and structures in crowded areas, in temporary buildings, cars and caravans.



Highlighted features:
  • Space saving technique
  • Condensation opening on each side wall
  • No lock nut required
  • Tool-free assembly
  • Clickable cover without screws
  • Fixing points within good reach
  • Easy entry for cable glands
  • Watertight sealing of the cable
  • IP55 rating
  • External dimensions (LxWxH): 85x85x40mm



Do you need any help?
Why not give us a call on 0161 791 2351 or 0161 879 9191.

Additional information

Brand

Unbranded

Specs

Witdh 85 mm
Length 85 mm
Height 40 mm
Base Polypropylene, flame-retardent
Cover Polypropylene, flame-retardent
Equiqment None
Entries 7
Tackable No
Rated insulation voltage AC 690 V
Explosion safety None
Fire protection None
Sealable No
Weatherproof No
Heavy metals-free Yes
PVC-free Yes
Silicone-free Yes
Ingress protection IP55 – acc. EN 60529 / DIN VDE 0470-1
Ambient temperature (min.) -25 °C
Ambient temperature (max.) 40 °C
Ambient temperature (24 h) 35 °C
Max. rel. humidity at 25° C (short Therm) 95%
Max. rel. humidity at 40° C 50%
