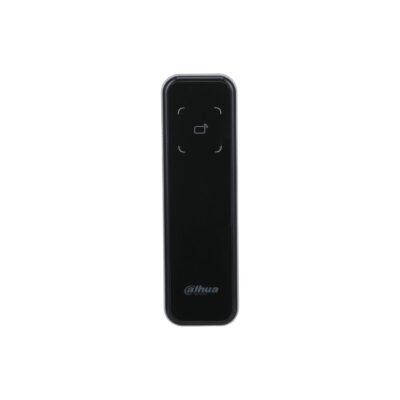

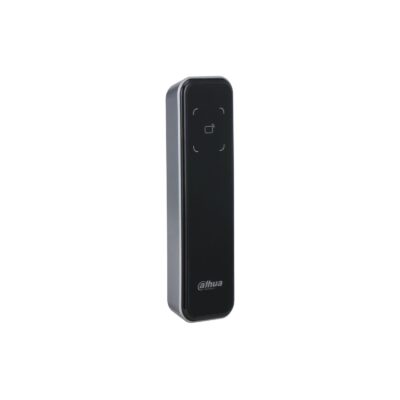

Dahua DHI-ASR2200A-B

Dahua DHI-ASR2200A-B, Dahua Card Swiping, Bluetooth card Reader

Description

Dahua DHI-ASR2200A-B, Dahua Card Swiping, Bluetooth card Reader.

DHI-ASR2200A-B

Water-proof RFID Reader

PC material, tempered glass panel and IP66, suitable for indoor and outdoor use.

Contactless card reading for IC cards (Mifare cards).

Unlock through card swiping and Bluetooth.

Communicates through the RS-485 port, Wiegand port, and Bluetooth.

Prompts using the buzzer and indicator light.

Supports the anti-tampering alarm.

The built-in watchdog program can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment.

All the connection ports have overcurrent and overvoltage protection.

Works with the DMSS mobile client.

Do you need any help?
Why not give us a call on        0161 791 2351 / 0161 879 9191           +44 7590 365583



Additional information

Weight 0.8 kg
Brand

Dahua

Megapixel

2MP

Camera Shape

Doorbell

Lens

2.2mm

Specifications

General
Power Supply 12 VDC, 0.5 A
Protection IP66
Power Consumption Standby ≤0.9 W, working ≤1.7W
Product Dimensions 135 mm × 40 mm × 15 mm (5.31″ × 1.57″ × 0.59″) (H
× W × D)
Packaging Dimensions
195 mm × 75 mm × 52 mm (7.68″ × 2.95″ × 2.05″) (H ×
W × D, 1 in inner carton)
415 mm × 400 mm × 230 mm (16.34″ × 15.75″ × 9.06″)
(H × W × D, carton)
Operating Temperature –30 °C to +70 °C (–22 °F to +158 °F)
Operating Humidity 5%–95% (RH), non-condensing
Operating Environment Outdoor
Gross Weight 0.16 kg (0.35 lb)
Installation Surface Mount
Certifications CE; FCC
· PC material, tempered glass panel and IP66, suitable for indoor and
outdoor use.
· Contactless card reading for IC cards (Mifare cards).
· Unlock through card swiping and Bluetooth.
· Communicates through the RS-485 port, Wiegand port, and Bluetooth.
· Prompts using the buzzer and indicator light.
· Supports the anti-tampering alarm.
· The built-in watchdog program can detect and control the abnormal
operation status of the equipment and perform recovery processing to
ensure the long-term operation of the equipment.
· All the connection ports have overcurrent and overvoltage protection.
· Works with the DMSS mobile client.
Access Reader | DHI-ASR2200A-B
Scene
Suitable for a variety of scenes including office buildings, schools,
factories, residential areas, the financial sector, insurance industry,
government departments, maritime safety bureaus and CBD business
centers.
Ordering Information
Type Model Description
Access
Reader DHI-ASR2200A-B Dahua Card Swiping, Bluetooth card Reader

Download

ASR2200A
